◆ Voltage: 380V/50HZ. 7.5A、10A are direct startup, above 15A is star triangle start
◆ Other pressure (up to 16bar) screw air compressor, welcome to negotiate
◆ The company continuously improves the products and retains the right to change the design.Parameters are subject to change without prior notice
◆ A after the model represents air cooling and W represents water cooling

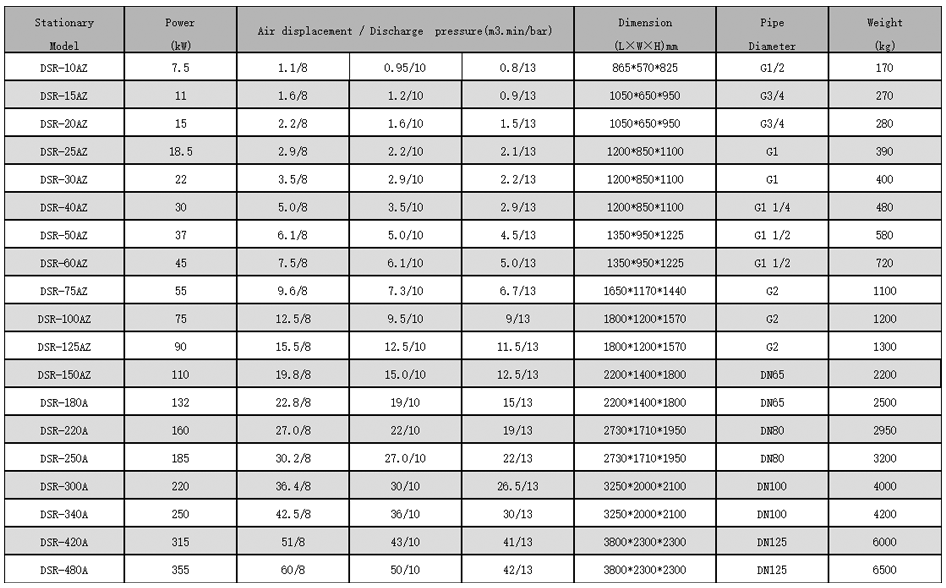

Technical parameters of direct driven screw air compressor
|
Stationary
Model
|
Power
(kW)
|
Air displacement / Discharge pressure(m3.min/bar)
|
Dimension
(L×W×H)mm
|
Pipe
Diameter
|
Weight
(kg)
|
DSR-10AZ
|
7.5
|
1.1/8
|
0.95/10
|
0.8/13
|
865*570*825
|
G1/2
|
170
|
|
DSR-15AZ
|
11
|
1.6/8
|
1.2/10
|
0.9/13
|
1050*650*950
|
G3/4
|
270
|
|
DSR-20AZ
|
15
|
2.2/8
|
1.6/10
|
1.5/13
|
1050*650*950
|
G3/4
|
280
|
|
DSR-25AZ
|
18.5
|
2.9/8
|
2.2/10
|
2.1/13
|
1200*850*1100
|
G1
|
390
|
|
DSR-30AZ
|
22
|
3.5/8
|
2.9/10
|
2.2/13
|
1200*850*1100
|
G1
|
400
|
|
DSR-40AZ
|
30
|
5.0/8
|
3.5/10
|
2.9/13
|
1200*850*1100
|
G1 1/4
|
480
|
|
DSR-50AZ
|
37
|
6.1/8
|
5.0/10
|
4.5/13
|
1350*950*1225
|
G1 1/2
|
580
|
|
DSR-60AZ
|
45
|
7.5/8
|
6.1/10
|
5.0/13
|
1350*950*1225
|
G1 1/2
|
720
|
|
DSR-75AZ
|
55
|
9.6/8
|
7.3/10
|
6.7/13
|
1650*1170*1440
|
G2
|
1100
|
|
DSR-100AZ
|
75
|
12.5/8
|
9.5/10
|
9/13
|
1800*1200*1570
|
G2
|
1200
|
|
DSR-125AZ
|
90
|
15.5/8
|
12.5/10
|
11.5/13
|
1800*1200*1570
|
G2
|
1300
|
|
DSR-150AZ
|
110
|
19.8/8
|
15.0/10
|
12.5/13
|
2200*1400*1800
|
DN65
|
2200
|
|
DSR-180A
|
132
|
22.8/8
|
19/10
|
15/13
|
2200*1400*1800
|
DN65
|
2500
|
|
DSR-220A
|
160
|
27.0/8
|
22/10
|
19/13
|
2730*1710*1950
|
DN80
|
2950
|
|
DSR-250A
|
185
|
30.2/8
|
27.0/10
|
22/13
|
2730*1710*1950
|
DN80
|
3200
|
|
DSR-300A
|
220
|
36.4/8
|
30/10
|
26.5/13
|
3250*2000*2100
|
DN100
|
4000
|
|
DSR-340A
|
250
|
42.5/8
|
36/10
|
30/13
|
3250*2000*2100
|
DN100
|
4200
|
|
DSR-420A
|
315
|
51/8
|
43/10
|
41/13
|
3800*2300*2300
|
DN125
|
6000
|
|
DSR-480A
|
355
|
60/8
|
50/10
|
42/13
|
3800*2300*2300
|
DN125
|
6500
|
